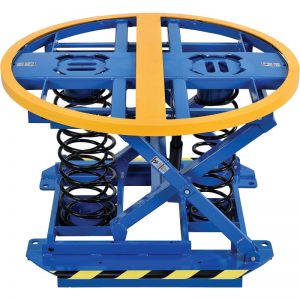

QSL1000 സ്പ്രിംഗ് ലിഫ്റ്റ് ടേബിൾ & QAL1000 ക്വിക്ക് എയർബാഗ് ലോഡർ

കറങ്ങുന്ന വർക്ക് ടേബിളിന്റെ സവിശേഷതകൾ:

  • മാനുവൽ ലോഡിംഗിനും അൺലോഡിംഗിനും അനുയോജ്യമായ ഉയരത്തിൽ ഒരു ലോഡ് യാന്ത്രികമായി നിലനിർത്തുക
  • വൈദ്യുത ശക്തി ആവശ്യമില്ല
  • സ്ഥിരതയുള്ള രൂപകൽപ്പനയ്ക്ക് ഫ്ലോർ ലാൻഡിംഗ് ആവശ്യമില്ല.
  • ഏത് സ്ഥാനത്തും വ്യാവസായിക കത്രിക ലിഫ്റ്റുകൾക്ക് സമീപം നിൽക്കാൻ ചെറിയ അടിത്തറ പ്രവർത്തിക്കുന്നു.
  • ഫോർക്ക് ലിഫ്റ്റ് ഇല്ലാതെ ഓപ്ഷണൽ ടേബിൾ മൂവർ ഉപയോഗിച്ച് ഏത് സ്ഥലത്തേക്കും പോകാൻ എളുപ്പമാണ്.

Compare with general lift tables, this QSL1000 series Spring Level Loader  and QAL1000 airbag pallet positioner  is a rotating lift table which can automatically maintain a load at the ideal height for manual loading and unloading without any electric or any manual operation, this lift table with rotate plate can automatically maintain at the top of the load as the working height to  reduce the discomfort of long-term bending just with the spring force of the spring/airbag and the gravity of the cargo.

വീഡിയോ ഷോ:





സ്പെസിഫിക്കേഷൻDetailsDifference
  • ഐ-ലിഫ്റ്റ് നമ്പർ.13136011313604
    മോഡൽQSL1000QAL1000
    ശേഷികിലോ (lb.)200-2000(440-4400)100-2000(220-4400)
    കം‌പ്രസ്സുചെയ്‌ത ഉയരംmm (in.)240(9.4)265(10.4)
    വിപുലീകരിച്ച ഉയരംmm (in.)710(28)710(28)
    കറങ്ങുന്ന മോതിരം, പുറത്ത് ഡയ.mm (in.)1110(44)1110(44)
    കറങ്ങുന്ന മോതിരം, ഉള്ളിൽ ഡയ.mm (in.)1035(40.7)1035(40.7)
    അടിസ്ഥാന ഫ്രെയിം നീളംmm (in.)1150(45.3)1150(45.3)
    അടിസ്ഥാന ഫ്രെയിം വീതിmm (in.)930(36.6)930(36.6)
    ഓപ്ഷൻലിഫ്റ്റ് ടേബിൾ മൂവർ

QAL1000 വിശദാംശങ്ങൾ:

It has an air charging port and pressure regulating knob, so you can adjust the height by adjust the air pressure. This can make up for the problem of oil leakage from ordinary Stationary Lift table

QSL1000 Details:

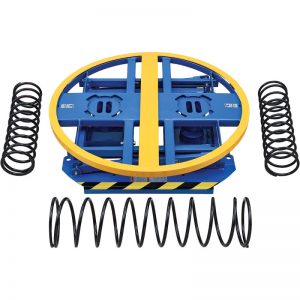

The frame of the Spring Activated Lift Table can handle loads of up to 4400 lbs. In order to adapt the unit for different pallet loads, the springs are changed. The springs are chosen to match the weight and height of a fully loaded pallet. A unit may have one to three springs. Each time the pallet weight or pallet height is changed, the springs may also need to be  changed. Instructions will show you how the springs are selected. Each spring is color-coded with paint mark at one end.

വ്യത്യസ്ത വലുപ്പമുള്ള 3 നീരുറവകൾ ഇതിൽ ഉൾപ്പെടുന്നു, നിങ്ങൾക്ക് ആവശ്യമുള്ള ശേഷിയും ഉയരവും അനുസരിച്ച് അവ സ ely ജന്യമായി ഗ്രൂപ്പുചെയ്യാം. ഫോർക്ക്ലിഫ്റ്റ് “പോക്കറ്റ്” കൊണ്ട് സജ്ജീകരിച്ചിരിക്കുന്നത് വ്യത്യസ്ത ജോലിസ്ഥലങ്ങൾക്കിടയിലുള്ള ഗതാഗതം പ്രാപ്തമാക്കുന്നു. ഫോർക്ക് ലിഫ്റ്റ് ലഭ്യമല്ലാത്ത പ്രദേശങ്ങളിൽ “ലിഫ്റ്റ് ടേബിൾ മൂവർ” ഓപ്ഷണലാണ്.

Load weight range is 440 lbs. to 4,400 lbs. The Spring Pallet Positioner allows for 360° rotation for easy load access. Fork pockets also come standard for repositioning of theTurntable platform.

തമ്മിലുള്ള വ്യത്യാസം എന്താണ് എയർബാഗ് ലോഡർ അല്ലെങ്കിൽ സ്പ്രിംഗ് ലോഡഡ് സിസർ ലിഫ്റ്റ് ടേബിൾ?

  • സ്ഥിരത: compared with the Spring Pallet lever loader , the Airbag Level Loader is more stable, not easy to bump, and the shock absorption performance is better.
  • വ്യത്യസ്ത ഗിയർ അഡ്ജസ്റ്റ്മെന്റ് രീതികൾ: the Spring Pallet scissor Lift table  has 3 springs, which can only be combined into different three loads by different combinations of three springs; The Airbag Pallet handing lift table can be adjusted arbitrarily by changing the air pressure.
  • ലോഡ് ശ്രേണി is different: the minimum load of spring Industrial Scissor Liftsis 440KG, the minimum load of air Skid Carousel Positioner can be less than 100KG, or even smaller.
  • വ്യത്യസ്ത ക്രമീകരണ രീതികൾ: it is convenient to adjust the load of the airbag Pallet leveller. It only needs to deflate and inflate, and it can be completed under the condition of heavy objects on the table, without removing the table. But the spring Pallet Positioner  needs to be removed from the table to replace the spring collocation to adjust the load.
  • എയർബാഗ് പ്ലാറ്റ്‌ഫോം സജ്ജീകരിക്കേണ്ടതുണ്ട് എയർ പമ്പ്.

It is also a rotating platforma it can realize the operation of each side by rotating the surface of the spring lifters, so the workers can easily complete all loading and unloading works just keep the same posture. Not only improves productivity but also protects workers from long time bending.

As weight is added to the Spring Actuated Level Loader , it causes the springs to compress, lowering the height of the platform. As weight is removed, the springs expand, raising the height of the lift and rotate table . Once properly calibrated for the maximum load weight, the lift will automatically stay at an ergonomic height.
